Motor up to 3.5 kW | 48V system | Torque 200 Nm | LG Battery 1200 Wh | Max speed 32 km/h | Weight 40 kg

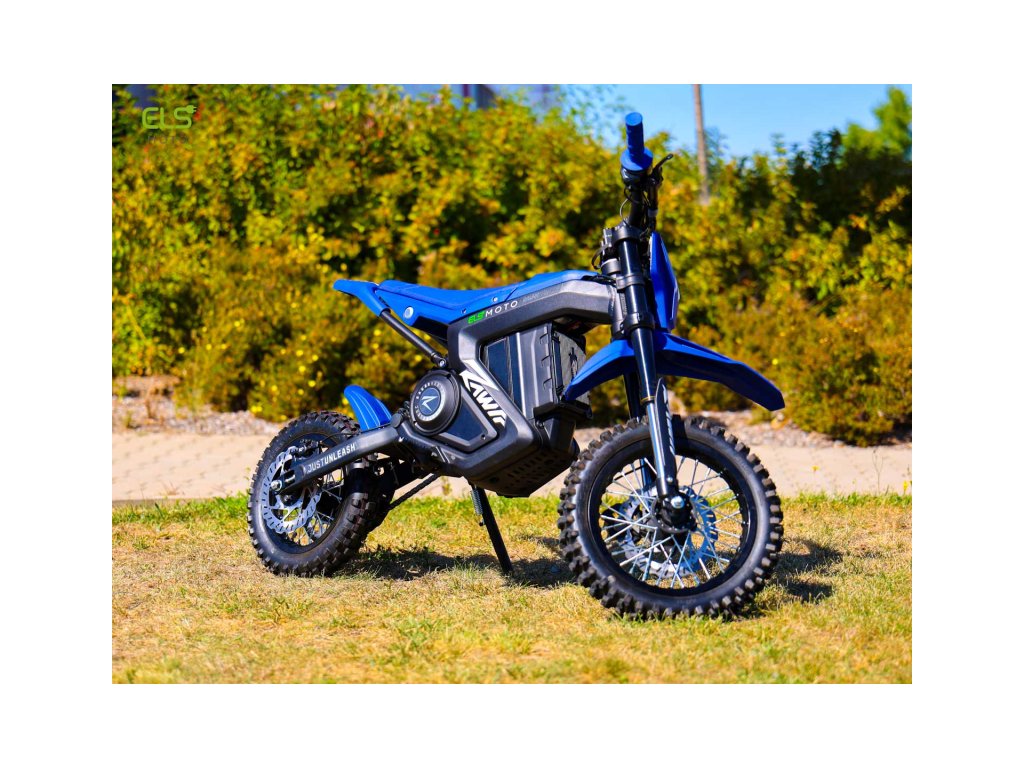

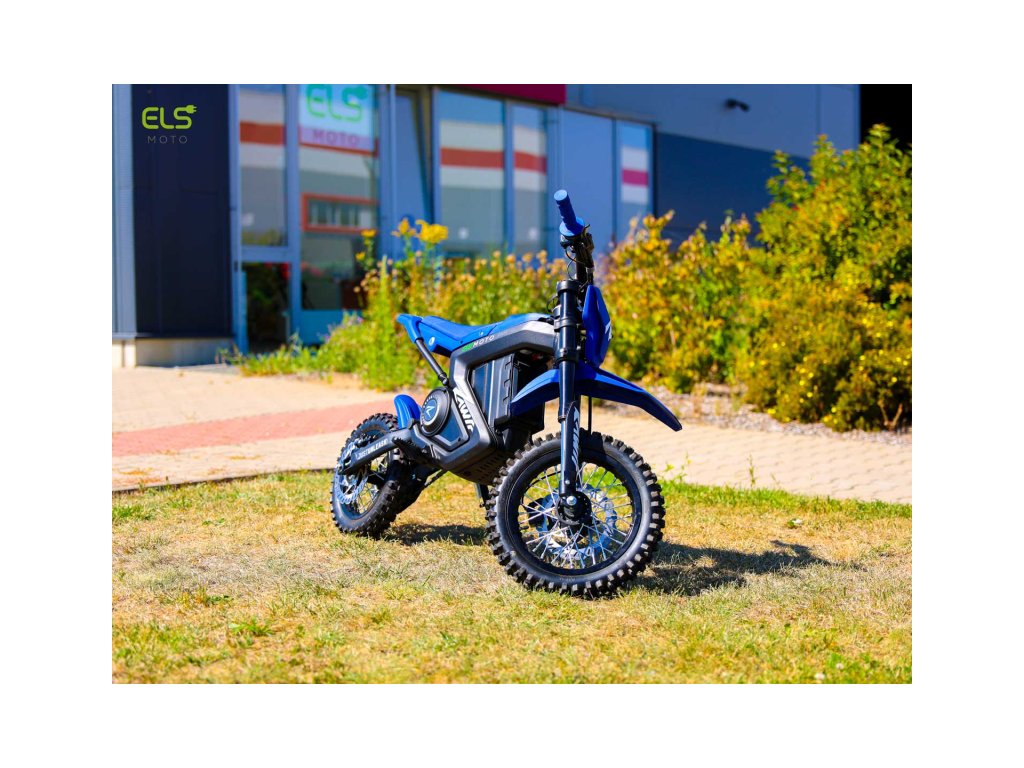

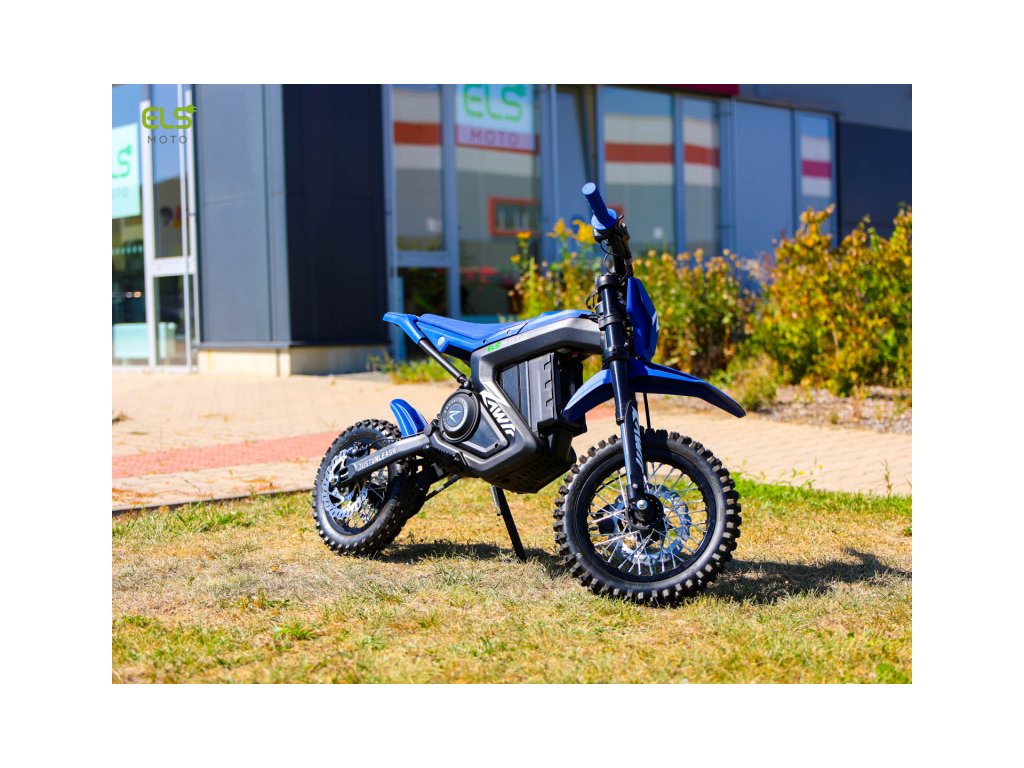

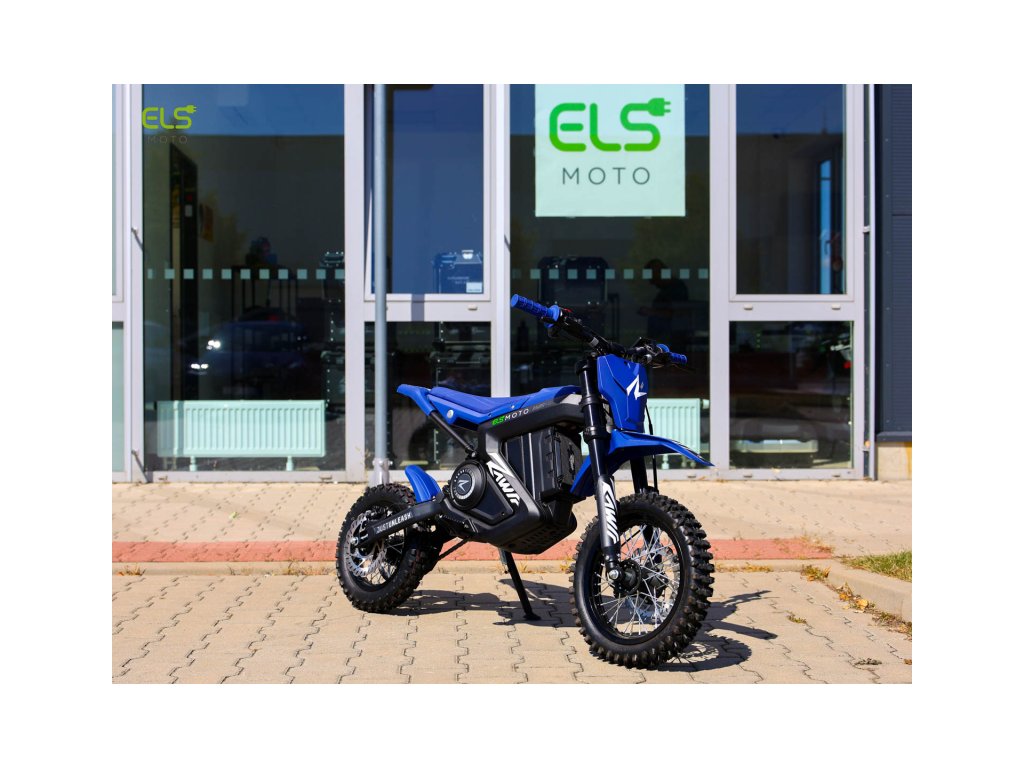

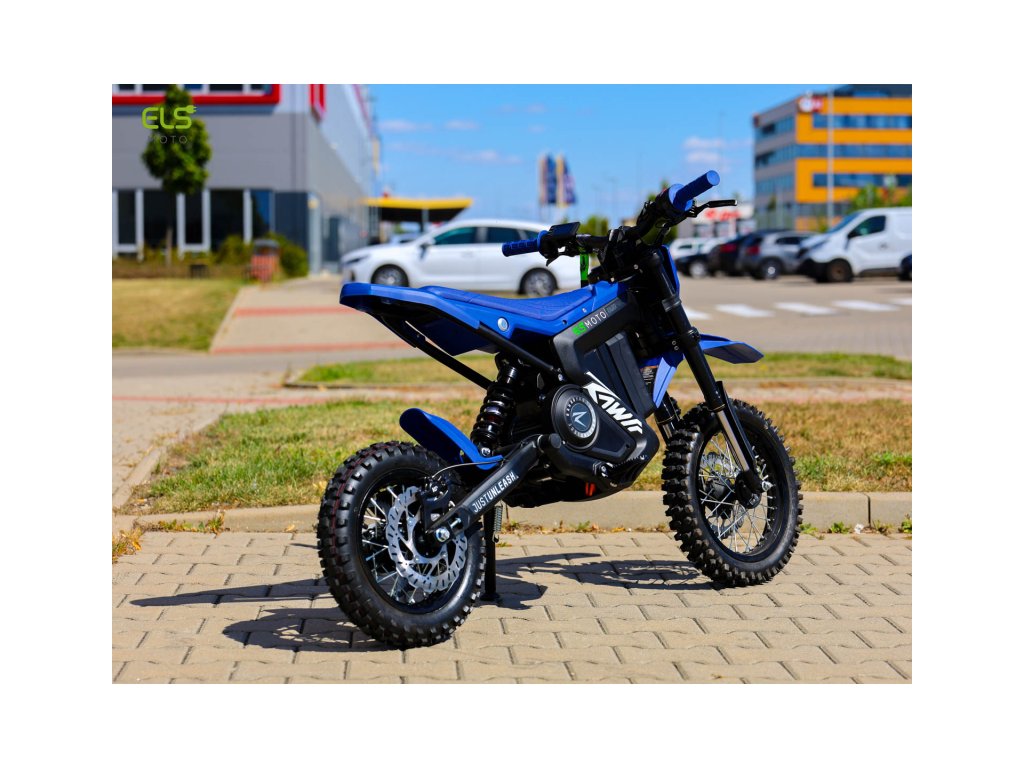

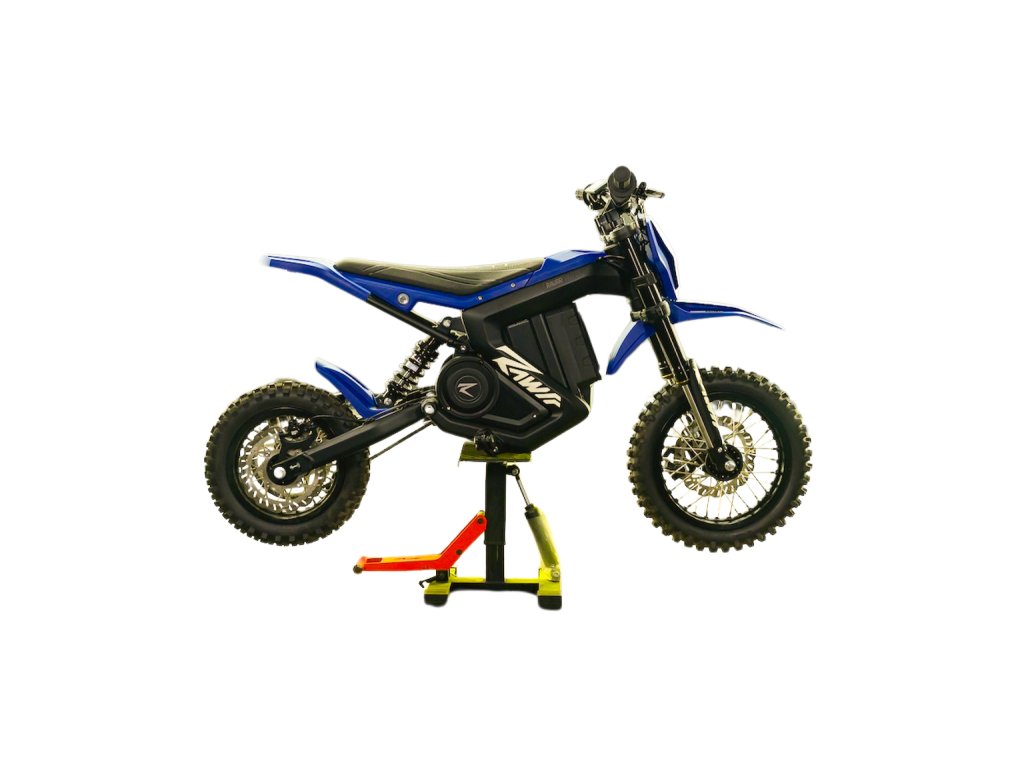

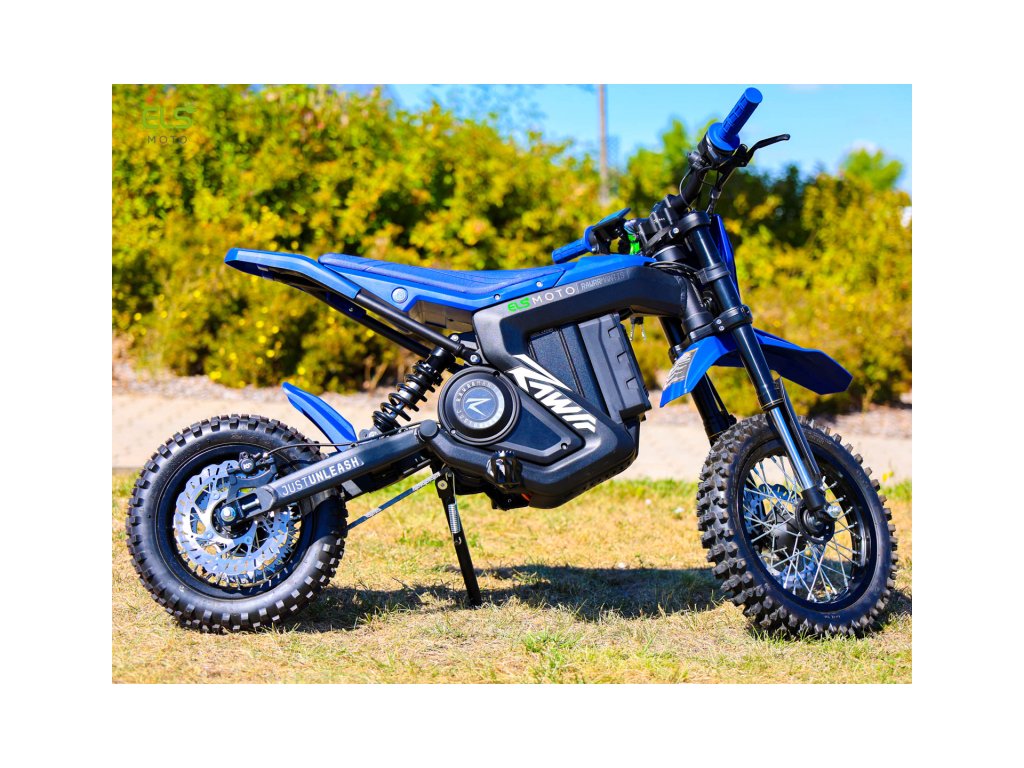

Rawrr Mantis Mini PUP is the ideal entry into the world of electric motorcycles. This powerful and safe machine is designed for young riders, beginners, and adults looking for a combination of fun, control, and reliability. With a motor output of up to 3.5 kW and a torque of 200 Nm, it offers a significantly better riding experience than any comparable pitbike in its category.
Although the Mini PUP is compact and safe, it is definitely not just a toy. It is a full-fledged electric motorcycle with a professional design that can handle off-road riding and more challenging conditions. With a maximum speed of 32 km/h and a weight of only 40 kg, it is ideal for young riders who are just learning, as well as for adults who want a light and nimble machine for fun.
Safe, Reliable, and Most Importantly, Fun
-
Height, weight, and power are tuned for natural handling and playfulness in any terrain.
-
Perfect for building riding confidence without compromising on performance.
-
Low center of gravity and smooth throttle response make every ride a pleasant yet exciting experience.
Technology and Construction
-

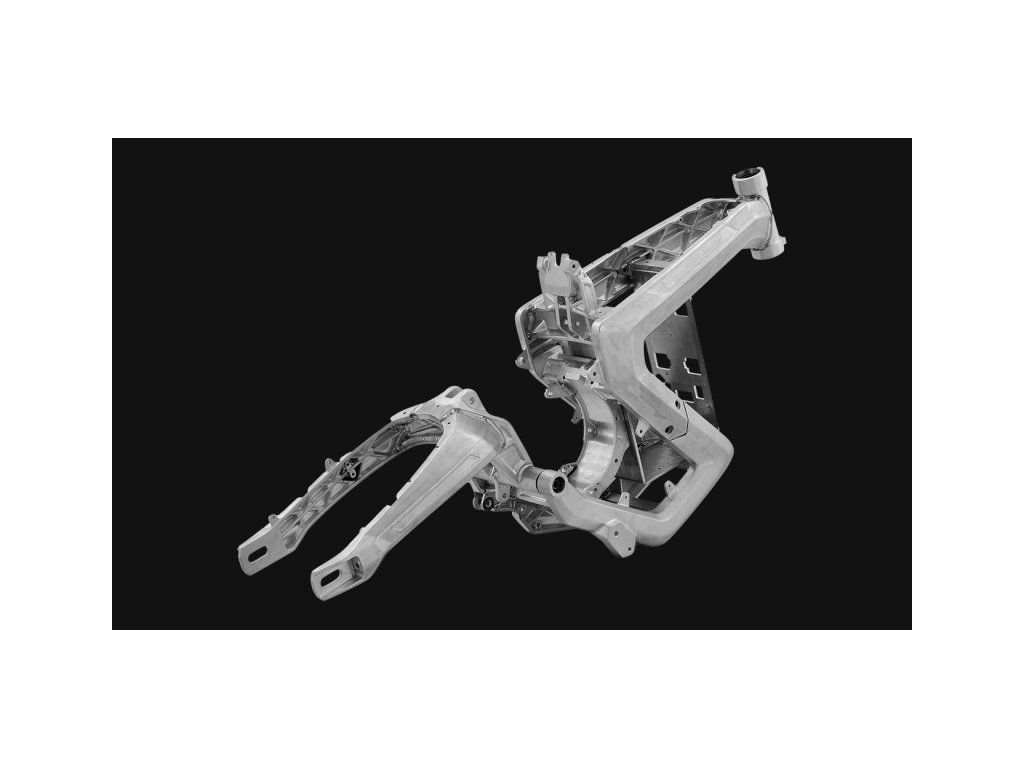

Full Aluminum Frame pressed with 6000 tons of pressure – strong, rigid, and lightweight.
-
PMSM Motor (permanent magnet synchronous motor) – ensures smooth and strong power delivery.
-
Intelligent FOC Controller – constantly analyzes your ride and adjusts the motor response to your style using adaptive algorithms.
Safety First
-

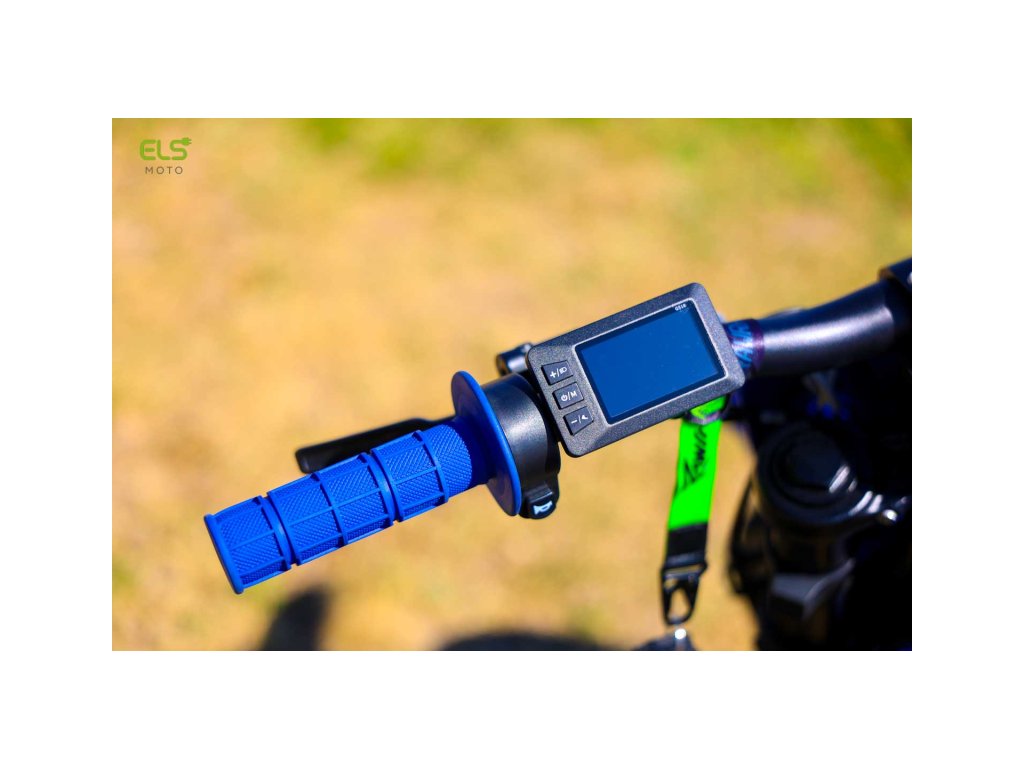

Magnetic Safety Switch – wrist strap disconnects the throttle in case of an accident or fall.
-
Brake Sensors – immediately disconnect the motor when the brakes are pressed, preventing unwanted acceleration.
-
Stand Sensor – prevents accidental takeoff when the motorcycle is parked.
Durability Without Compromise
-
The motorcycle is designed for all terrains – mud, rain, and puddles are not a problem.
-
Waterproof 48V LG Battery is protected against water ingress, so you can wash the machine without worry.
Rawrr Mantis Mini PUP is the perfect electric bike for young riders and beginners who want to experience the joy of off-road riding without unnecessary compromises. It combines playfulness, performance, and safety into one well-designed whole.
Parameters:

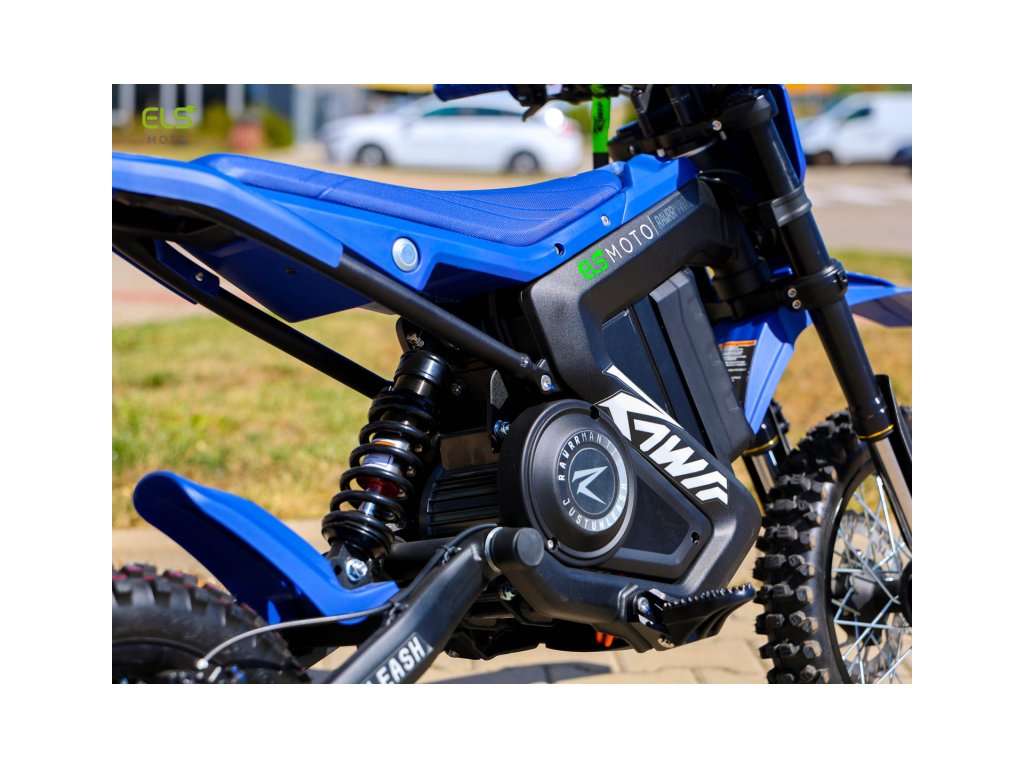

motor: manufacturer QS, mid-mounted with triple water protection with a nominal power of 2 kW / peak up to 3.5 kW.
torque: at the wheel peak 200 Nm
controller: FOC sine wave with multi-curve algorithm capable of real-time monitoring of speed, motor torque, and current intensity, and releasing energy in a controlled manner
battery: lithium battery 48V / 25 Ah (1.2 KWh) from manufacturer LG, CAN bus, 1200 charging cycles for min. 80,000 km, weight 4 kg
frame: strength alloy aluminum, forged at 6000 tons of pressure.

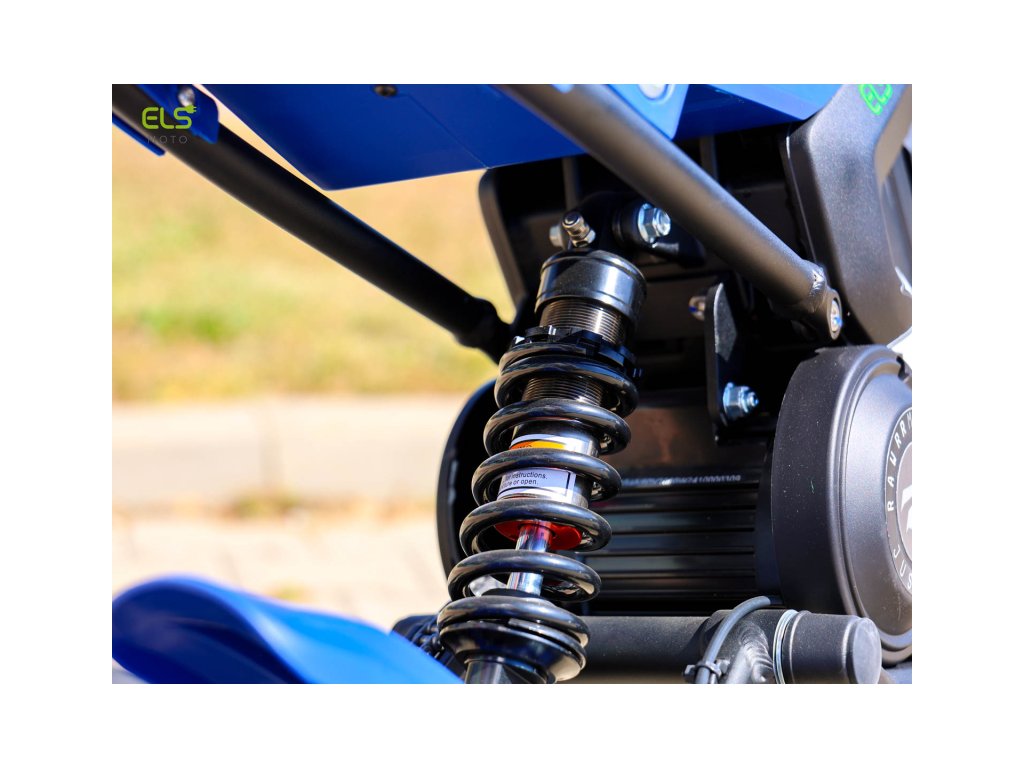

shock absorbers: fully adjustable, hydraulic from manufacturer KKE
max. speed.: 32 km/h
range: real 15-50 km - depending on riding style and terrain type.
climbing: 45 degrees (rider weight 50 kg)
charging time: 3 hours

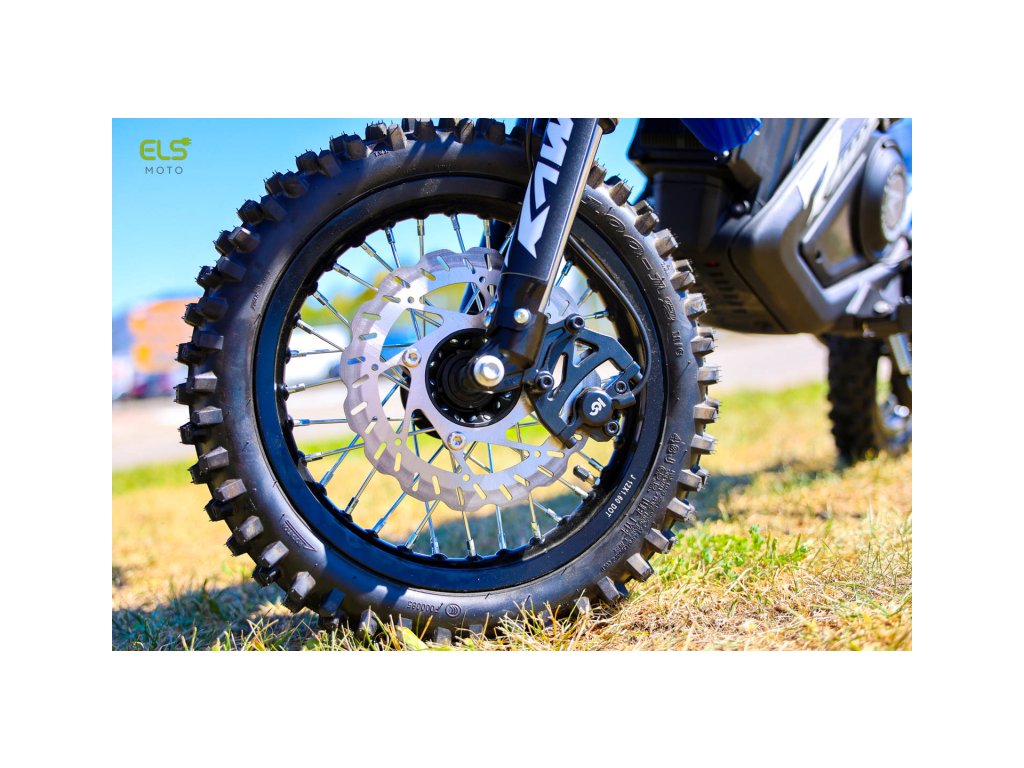

brakes: hydraulic, four-piston, 220 mm discs from manufacturer Karasawa + recuperation
dimensions: 1510*671*900 mm
wheelbase: 1037 mm
seat height: 654 mm
tire dimensions: front 60/100 - 14 inches / rear 2.75 - 12
weight of the motorcycle: xx kg without battery
weight of the motorcycle with battery: 50 kg
total allowed weight: -- kg
water resistance: IP67
Included: charger
This model is not intended for use on public roads, it does not have a COC document.
24-month warranty
ELS MOTO:
In the Czech Republic, Rawrr can be purchased through our company ELS MOTO, which is the exclusive authorized importer for the Czech Republic.
Manufacturer Rawrr:
The company Rawrr is a manufacturer of electric off-road motorcycles, known for their performance and innovative design. The design team is based in Italy, research and development take place in Asia, and the company's headquarters is located in Los Angeles, California.
Rawrr Mantis Technology Co., Limited is a famous American motorcycle brand. The company has office space of 5000 square meters and a factory building of more than 20,000 square meters. It has a professional technical team and a global design team with unparalleled technical strength in research and development. Rawrr builds a top-tier brand of electric off-road motorcycles.
